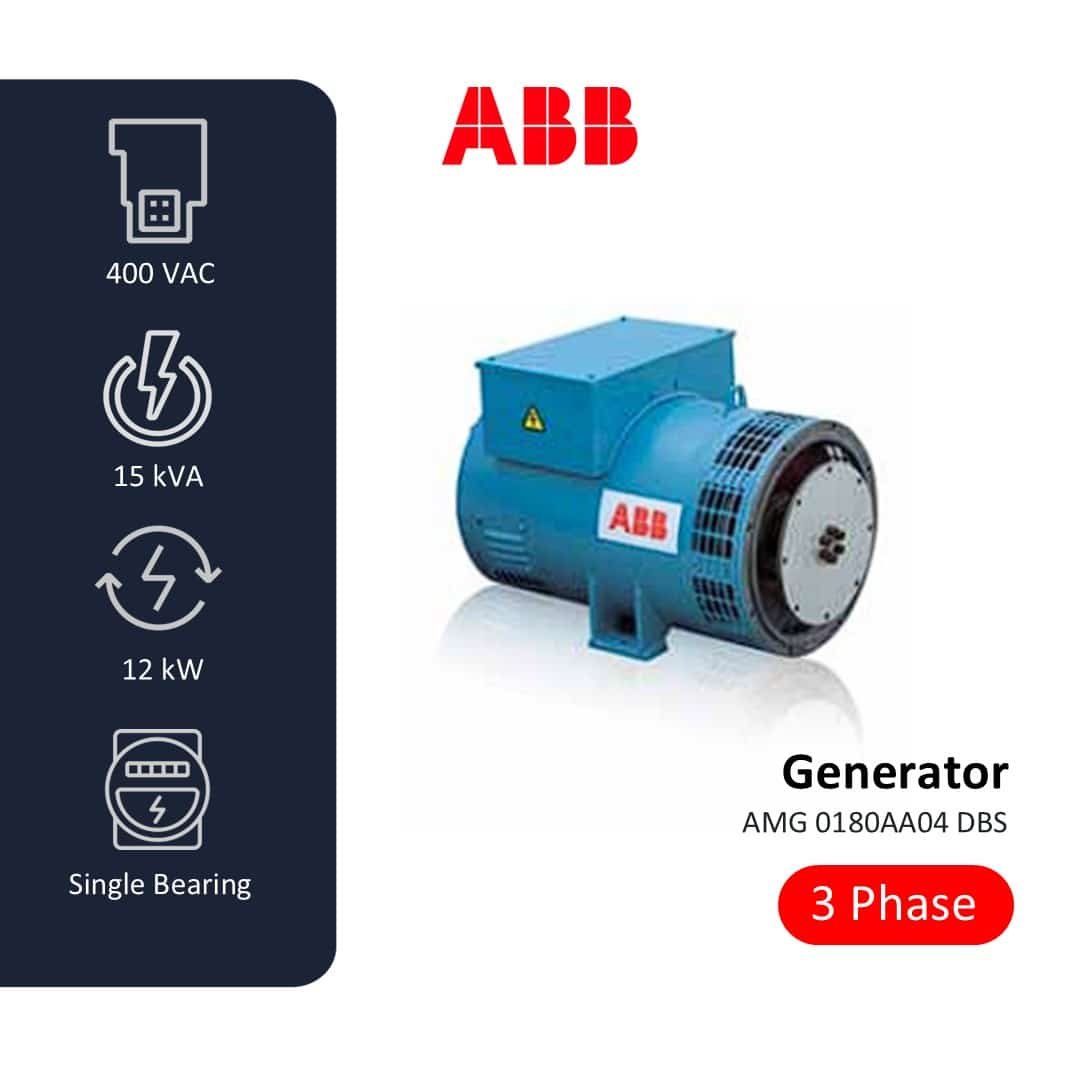

ABB AC Generators AMG 0180AA04 DBS – ABB low voltage (LV) generators for industrial applications

ABB low voltage (LV) generators for industrial applications combine the cost efficiency of a standard design with a full selection of options, enabling deployment in a wide range of situations. They are used to supply continuous or standby power for facilities like schools, hospitals, offices and factories, and for demanding applications like mines, telecommunications, cogeneration, and transportation.
Main standard IEC 60034
Rated power factor 0.8
Insulation class H
Temperature rise H
Ambient temperature 40 °C
Altitude over sea level ≤ 1000 m
Cooling/Protection IC0A1/IP23
Single bearing Double bearing
Mounting arrangement IM 2105 IM 1001
Weight 110 kg 125 kg
Inertia 0.19 kgm
2
0.18 kgm
2
Direction of rotation CW(Facing drive end)
Maximum overspeed 2250 rpm
Winding pitch Two thirds (2/3)
Stator winding resistance 0.751 per phase at 20ć series star connection
Rotor winging resistance 0.583 at 20°C
Ex. Stator winding resistance 12.86 at 20°C
Ex. Rotor winding resistance 0.162 at 20°C
Total Harmonic Distortion At no load<1.5%, at rated Linear balanced load <3.5%
Voltage regulation ±1 %
Telephone Interference THF<2% TIF<50
Frequency 50 Hz 60 Hz
Speed 1500 rpm 1800 rpm
Cooling Air 0.05 m³/sec 0.06 m³/sec

Power Factor : 0.8
Frequency : 50Hz
Speed : 1500RPM
Insulation : Class H
Temp Rise : Class H / 40 Celcius Ambient
Enclosure : IP23
Construction : Single bearing
Application : Continuous Rating

Note:
1. GARANSI 1 TAHUN (PERBAIKAN)
2. DIPRODUKSI/DIBUAT TAHUN 2013
3. HARGA HANYA BERLAKU JIKA MASIH ADA STOK
4. HARGA SUDAH TERMASUK PPN
5. HARGA LOCO GUDANG STOK
