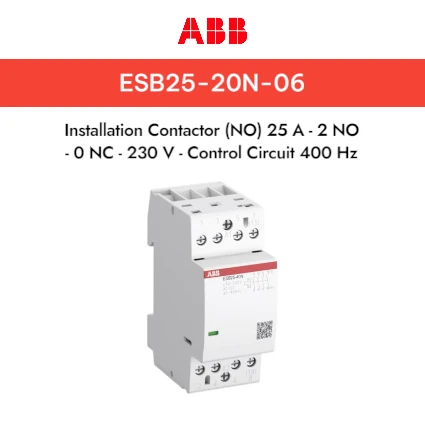

ESB25-20N-06 Installation Contactor (NO) 25 A – 2 NO – 0 NC – 230 V – Control Circuit 400 Hz Kontaktor Contactor ABB

Name: ESB25-20N-06 Installation Contactor (NO) 25 A - 2 NO - 0 NC - 230 V - Control Circuit 400 Hz Kontaktor Contactor ABB
Brand: ABB
SKU: 1SAE231111R0620
Availability: InStock

1 terjual dalam 19 jam terakhir

2 orang menambahkan produk ke keranjang

Merek:

ABB

ESB25-20N-06 Installation Contactor (NO) 25 A

Estimasi Kirim: Sen, Feb 23 – Sel, Feb 24 (Sabtu-Minggu Tutup)

... orang melihat produk ini sekarang

Membagikan

SKU: 1SAE231111R0620 Kategori: ABB, Contactor Tags: 1SAE231111R0620, 25A, 2no 2nc, ABB, contactor abb, kontaktor abb Brand: ABB

Harga aslinya adalah: Rp629.370.Harga saat ini adalah: Rp394.615.

Tersedia

kuantitas ESB25-20N-06 Installation Contactor (NO) 25 A - 2 NO - 0 NC - 230 V - Control Circuit 400 Hz Kontaktor Contactor ABB

Deskripsi Spesifikasi Ulasan (0)

The ESB25..N installation contactors are used to control single and three-phase loads up to 25 A and can be operated by AC or DC.
These contactors are made for use in household applications as well as in industrial environments.
The following benefits are provided:
Hum-free operation, low power consumption and integrated overvoltage protection.
Various contact combinations and accessories are available

Product Specifications

Dimensions

Product Net Width	36 mm
Product Net Depth / Length	65 mm
Product Net Height	85 mm
Product Net Weight	0.225 kg

Technical Data

Number of Main Contacts NO	2
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	0
Number of Auxiliary Contacts NC	0
Number of Poles	2P
Standards	IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 61095 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L
Rated Operational Voltage	Main Circuit 220 V DC Main Circuit 400 V AC
Rated Frequency (f)	Control Circuit: 400 Hz / 50 Hz / 60 Hz / DC Main Circuit: 50 Hz / 60 Hz / DC
Rated Operational Current AC-1 (Ie)	25 A
Rated Operational Current AC-3 (Ie)	9 A (230 V, 1 Phase)
Rated Operational Current AC-7a (Ie)	25 A
Rated Operational Current AC-7b (Ie)	9 A (230 V, 1 Phase)
Rated Operational Power AC-1 (Pe)	5.8 kW (230 V, 1 Phase)
Rated Operational Power AC-3 (Pe)	1.3 kW (230 V, 1 Phase)
Rated Operational Power AC-7a (Pe)	5.8 kW (230 V, 1 Phase)
Rated Operational Power AC-7b (Pe)	1.3 kW (230 V, 1 Phase)
Rated Breaking Capacity AC-3	8 x Ie
Rated Making Capacity AC-3	10 x Ie
Rated Short-time Withstand Current (Icw)	72 A (10 s at 40°C)
Rated Insulation Voltage (Ui)	500 V
Rated Impulse Withstand Voltage (Uimp)	6 kV
Electrical Durability	AC-1: 130,000 cycles AC-3: 500,000 cycles AC-7a: 130,000 cycles AC-7b: 500,000 cycles
Mechanical Durability	1,000,000 cycles
Rated Control Circuit Voltage (Uc)	230 V
Coil Consumption	Holding 50/60 Hz: 4 VA Holding DC: 4 W Pull-in 50/60 Hz: 4 VA Pull-in DC: 4 W
Power Loss	2 W per Pole (AC-1)
Mounting	DIN Rail TH35-15 (35x15 mm) DIN Rail TH35-7.5 (35x7.5 mm)
Degree of Protection	IP20
Terminal Type	Screw Terminals
Width (Modular Spacings)	2
Product Name	Installation Contactor
