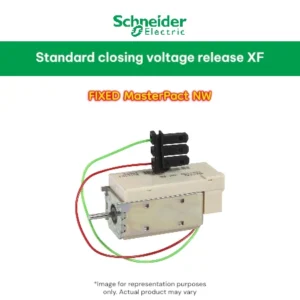

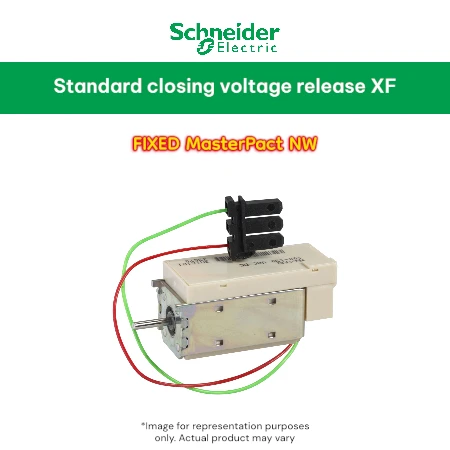

Schneider voltage release XF – 200..250 V DC/AC 50/60 Hz

Main
Range
MasterPacT
Range of product
MasterPact NT
MasterPact NW
MasterPact NW DC
Device short name
XF
Product or component type
Voltage release
Device application
Control
Voltage release type
Closing coil
Instantaneous voltage release
Control type
Standard
[Uc] control circuit voltage
200…250 V AC 50/60 Hz
200…250 V DC
Circuit breaker mounting mode
Fixed
Range compatibility
Masterpact MasterPact NT
Masterpact MasterPact NW
Masterpact MasterPact NW DC
Complementary
Operating threshold
0.85…1.1 Un closing
Response time
55 ms +/- 10 % for MasterPact NT
70 ms +/- 10 % for MasterPact NW 800 A
70 ms +/- 10 % for MasterPact NW 1000 A
70 ms +/- 10 % for MasterPact NW 1250 A
70 ms +/- 10 % for MasterPact NW 1600 A
70 ms +/- 10 % for MasterPact NW 2000 A
70 ms +/- 10 % for MasterPact NW 2500 A
70 ms +/- 10 % for MasterPact NW 3200 A
70 ms +/- 10 % for MasterPact NW 4000 A
80 ms +/- 10 % for MasterPact NW 5000 A
80 ms +/- 10 % for MasterPact NW 6300 A
Supply holding power
4.5 VA
