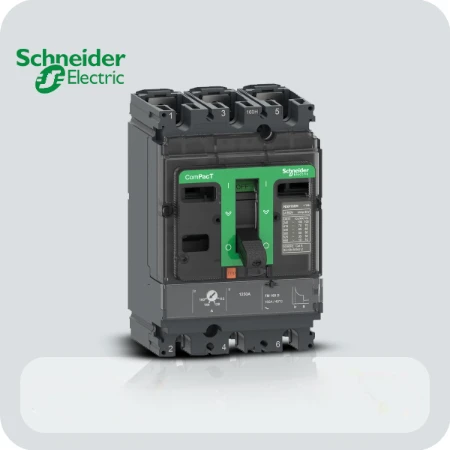

Circuit breaker ComPacT NSX250F, 36kA at 415VAC, MA trip unit 220A, 3 poles 3d

Main
Range
ComPacT
Product name
ComPacT NSX
Device short name
NSX250F
Product or component type
Circuit breaker
Device application
Motor protection
Poles description
3P
Protected poles description
3D
[In] rated current
220 A at 65 °C
[Ue] rated operational voltage
690 V AC 50/60 Hz
Network type
AC
Network frequency
50/60 Hz
Suitability for isolation
Yes conforming to EN/IEC 60947-2
Utilisation category
Category A
Breaking capacity
85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
30 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
85 kA Icu at 240 V AC 50/60 Hz conforming to UL 60947-4-1
35 kA Icu at 480 V AC 50/60 Hz conforming to UL 60947-4-1
15 kA Icu at 600 V AC 50/60 Hz conforming to UL 60947-4-1
Breaking capacity code
F 36 kA 415 V AC
Trip unit name
MA
Trip unit technology
Magnetic
Trip unit protection functions
I
Control type
Toggle
Circuit breaker mounting mode
Fixed
Complementary
[Ui] rated insulation voltage
800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage
8 kV
[Ics] rated service breaking capacity
85 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
35 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
30 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
22 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2
8 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Mechanical durability
20000 cycles
Electrical durability
20000 cycles at 440 V In/2
10000 cycles at 440 V In
10000 cycles at 690 V In/2
5000 cycles at 690 V In
Power dissipation per pole
14.52 W
Mounting support
Backplate
Mounting position
Horizontal and vertical
Flat on the back
Upside connection
Front
Downside connection
Front
Connection pitch
35 mm
Protection type
I : for short-circuit protection (magnetic)
Trip unit rating
220 A at 65 °C
Short-time protection pick-up adjustment type Isd
Adjustable
[Isd] Short-time protection pick-up adjustment range
9…14 x In
Instantaneous protection pick-up adjustment type Ii
Adjustable 9 settings
[Ii] instantaneous protection pick-up adjustment range
9…14 x In
Earth-leakage protection
Without
Number of slots
5 slot(s)
Width (W)
105 mm
Height (H)
161 mm
Depth (D)
86 mm
Net weight
2.4 kg
