Merek:
SCHNEIDER

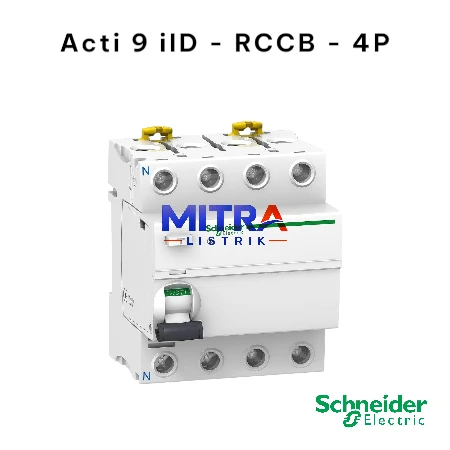

Acti 9 iID – RCCB – 4P – 40A – 30mA – type AC

  ... orang melihat produk ini sekarang
  Membagikan
SKU: A9R71440 Kategori: , Brand:

Harga aslinya adalah: Rp2.208.195.Harga saat ini adalah: Rp1.104.098.

Hanya 1 tersisa di stok

Deskripsi Informasi Tambahan Cek Ongkir

Specifications

Main
RangeActi9
Product nameActi9 iID
Product or component typeResidual current circuit breaker (RCCB)
Device short nameiID
Poles description4P
Neutral positionLeft
[In] rated current40 A
Network typeAC
Earth-leakage sensitivity30 mA
Earth-leakage protection time delayInstantaneous
Earth-leakage protection classType AC
Complementary
Device location in systemOutgoer
Network frequency50/60 Hz
[Ue] rated operational voltage380…415 V AC 50/60 Hz
Residual current tripping technologyVoltage independent
Rated breaking and making capacityIdm 1500 A
Im 1500 A
Rated conditional short-circuit current10 kA
[Ui] rated insulation voltage500 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage6 kV
Contact position indicatorYes
Control typeToggle
Mounting modeClip-on
Mounting supportDIN rail
9 mm pitches8
Height91 mm
Width72 mm
Depth73.5 mm
Product weight0.37 kg
ColourWhite
Mechanical durability20000 cycles
Electrical durabilityAC-1: 15000 cycles
Locking options descriptionPadlocking device
Connections – terminalsSingle terminal top or bottom 1…35 mm² rigid
Single terminal top or bottom 1…25 mm² flexible
Single terminal top or bottom 1…25 mm² flexible with ferrule
Wire stripping length14 mm for top or bottom connection
Tightening torque3.5 N.m top or bottom
Environment
StandardsEN/IEC 61008-1
Product certificationsSNI
IP degree of protectionIP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
Pollution degree3
Electromagnetic compatibility8/20 µs impulse withstand, 250 A conforming to EN/IEC 61008-1
Ambient air temperature for operation-5…60 °C
Ambient air temperature for storage-40…85 °C
Berat0,5 kg
Dimensi10 × 8,5 × 7,5 cm
