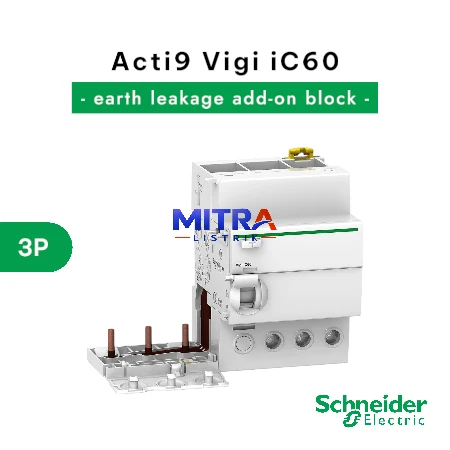

Schneider Acti 9 Schneider Electric Acti 9 Modul Vigi Tipe MCB iC60 -3P 63A 30mA – A9V41363

Vigi iC60 – earth leakage add-on block – 3P – 63A – 30mA – AC type
Rp3.414.526 Harga aslinya adalah: Rp3.414.526.Rp1.707.263Harga saat ini adalah: Rp1.707.263.
Tersedia
Specifications
| Range | Acti9 |
|---|---|
| Product name | Acti9 Vigi iC60 |
| Product or component type | Add-on residual current device |
| Device short name | Vigi iC60 |
| Poles description | 3P |
| [In] rated current | 63 A |
| Earth-leakage sensitivity | 30 mA |
| Earth-leakage protection time delay | Instantaneous |
| Earth leakage protection type | Type AC |
| Network type | AC |
| Network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 400…415 V AC 50/60 Hz conforming to EN/IEC 61009-1 400…415 V AC 50/60 Hz conforming to EN/IEC 61009-2-1 |
| Standards | EN/IEC 61009-1 EN/IEC 61009-2-1 |
| 9 mm pitches | 7 |
| Device location in system | Outgoer |
|---|---|
| Residual current tripping technology | Voltage independent |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Range compatibility | Acti9 iC60 Acti9 Reflex iC60 |
| Product compatibility | Single terminal |
| Local signalling | Trip indicator |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Electrical connection to mcb | By screws |
| Comb busbar and distribution block compatibility | Bottom: YES |
| Height | 91 mm |
| Width | 117 mm |
| Depth | 73.5 mm |
| Product weight | 0.21 kg |
| Connections – terminals | Tunnel type terminal downside for 1 cable(s) 1…35 mm² rigid without cable end Tunnel type terminal downside for 1 cable(s) 1…25 mm² flexible without cable end Tunnel type terminal downside for 1 cable(s) 1…25 mm² flexible with cable end |
| Wire stripping length | 14 mm for bottom connection |
| Tightening torque | 3.5 N.m bottom |
