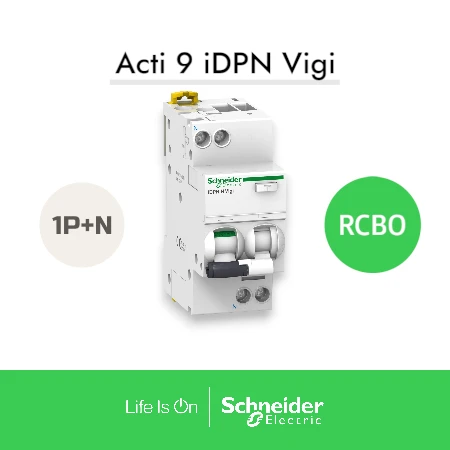

Acti 9 iDPN N Vigi – RCBO – 1P+N – 16A – C Curve – 6000A – 300mA – type AC

Main
Range
Acti9
Product name
Acti9 iDPN Vigi
Product or component type
Residual current breaker with overcurrent protection (RCBO)
Device short name
iDPN N Vigi
Device application
Distribution
Poles description
1P + N
Number of protected poles
1
Neutral position
Left
[In] rated current
16 A
Network type
AC
Network frequency
50 Hz
Trip unit technology
Thermal-magnetic
Curve code
C
Earth-leakage sensitivity
300 mA
Suitability for isolation
Yes conforming to EN/IEC 60947-2
Complementary
Device location in system
Outgoer
[Ue] rated operational voltage
230…240 V AC 50 Hz
Magnetic tripping limit
5…10 x In
Residual current tripping technology
Voltage independent
Earth-leakage protection time delay
Instantaneous
Earth-leakage protection class
Type AC
Breaking capacity
6000 A Icn at 230…240 V AC 50 Hz conforming to EN/IEC 61009-2-1
[Ics] rated service breaking capacity
6000 A 100 % x Icn at 230…240 V AC 50 Hz conforming to EN/IEC 61009-2-1
Rated breaking and making capacity
Idm 6000 A at 230…240 V AC 50 Hz conforming to EN/IEC 61009-2-1
Limitation class
3 conforming to EN/IEC 61009-2-1
[Ui] rated insulation voltage
400 V AC 50 Hz
[Uimp] rated impulse withstand voltage
4 kV
Contact position indicator
Yes
Control type
Toggle
Local signalling
ON, OFF, fault trip
Mounting mode
Clip-on
Mounting support
DIN rail
Comb busbar and distribution block compatibility
Top or bottom: YES
Connection pitch
9 mm between phase and neutral
9 mm pitches
4
Height
85 mm
Width
36 mm
Depth
73 mm
Net weight
125 g
Colour
White
Mechanical durability
20000 cycles
Electrical durability
20000 cycles
Locking options description
Padlocking device
Connections – terminals
Single terminal top or bottom 1…16 mm² rigid
Single terminal top or bottom 1…10 mm² flexible
Single terminal top or bottom 1…10 mm² flexible with ferrule
Wire stripping length
15 mm for top or bottom connection
Tightening torque
2 N.m top or bottom
Earth-leakage protection
Integrated
